Cone top chimney cap with base acid-resistant
The chimney cap serves the purpose of protecting the internal part of the chimney from atmospheric precipitation, reinforcing the chimney draft, improving the aesthetics of the chimney, and deterring potential intruders such as birds.
Made of acid-resistant stainless steel sheet 0.6 mm thick of the highest grade 1.4404 – ensuring high temperature resistance up to 650°C and long lifespan. Mounted using 4 mounting holes. The base is permanently connected to the chimney cap.
It is used as the termination for a ventilation chimney (especially near a flue chimney from which combustion gases may blow) or a flue chimney fueled by materials such as coal, wood, pellets, gas or oil.
Ø200
Models and technical specifications
When to install
Models and technical specifications

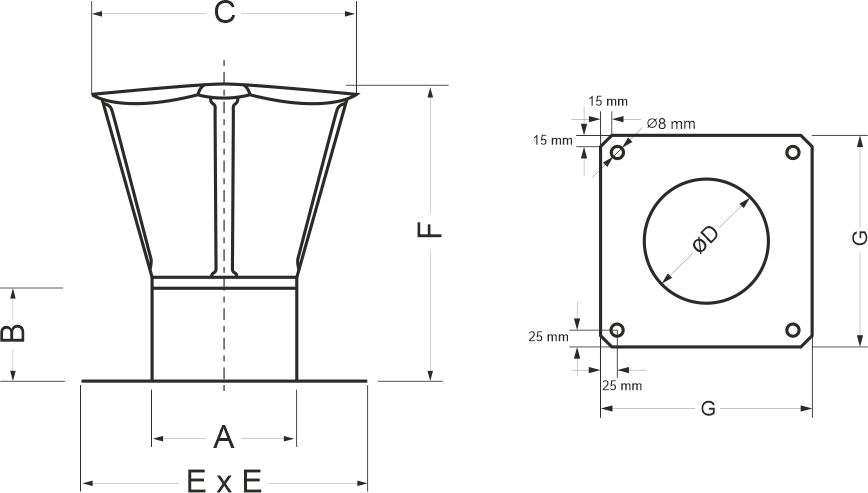

| code | name | A [mm] | B [mm] | F [mm] | C [mm] | E x E [mm] | D [mm] | G* [mm] |
|---|---|---|---|---|---|---|---|---|
| 02-767 | Cone top chimney cap Ø200 with base acid-resistant | 200 | 80 | 320 | 330 | 300 x 300 | 200 | 315 |
*tolerance of up to 5%
When to install
The chimney cap should be installed:
- in case of weak or lack of draft during burning in the heating device
- when there is a backflow of fumes into the chimney during burning
- when the chimney is too short and has a small cross-section, causing disturbances in the flow of exhaust gases
- in areas prone to strong winds
- when the house is surrounded by tall trees, tall buildings, or is located in a valley
- when the chimney cap is located below the ridge of the roof
