Industrial fan aRk
The aRk fans are industrial fans painted white and designed for wall-mounted installation.
Ø 160 Ø 200
Description
Models and technical specification
Documents
Description
The aRk fans are industrial fans painted white and designed for wall-mounted installation. They can be used in public utility spaces (shops, bars, restaurants, restrooms) as well as in residential and industrial premises (workshops, factories, warehouses, garages). In addition, when paired with the aRo speed controller, it’s possible to adjust the fan’s operating intensity according to the user’s needs.

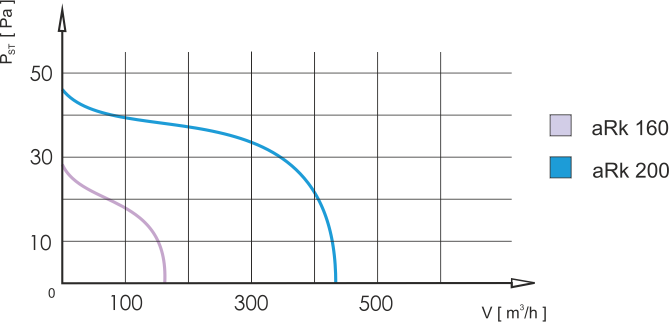

Models and technical specification
| size | code | air flow | acoustic pressure | static pressure | frequency voltage | motor power | rev.(1/min) | power consumpion | max temperature work | net weight | degree of protection | insulation class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 | 01-300 | 185 m3/h | 52 dB(A) | 32 Pa | 230 V/50V, 50Hz | 32 W | 1400 | 0,20 A | 40°C | 1,70 kg | IP X2 | 1 |
| 200 | 01-301 | 400 m3/h | 54 dB(A) | 52 Pa | 230 V/50V, 50Hz | 40 W | 1400 | 0,25 A | 40°C | 1,97 kg | IP X2 | 1 |
| [mm] | aRk ø 160 | aRk ø 200 |
|---|---|---|
| A | 225 | 265 |
| B | 182 | 224 |
| C | 120 | 130 |
| D | 160 | 200 |
| D1 | 155 | 195 |
Documents
