Domestic duct fan aRc 2
Axial duct fan mounted directly in ventilation duct.
Available diameters:
Ø 100
S
It is basic model and can be activated with its own switch, for example, together with light
BB
aRc fans with ball bearing on special order olny
About product
Models and technical data
Documents
Video
Back valve
About product
Axial duct fan of the aRc family usually mounted directly in the duct system has an additional functionality in the form of an adapter that brings the power supply outside the system for easy access and allows the fan to be mounted on the ventilation duct joint without additional components.
All of our fans are equipped with thermal protection, which protects against overheating.
Models and technical data
| diameter | code | model | air flow | acoustic pressure | static pressure | voltage frequency | motor power | frequency (1/min) | protection degree | net weight | gross weight | pcs. in package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 01-074 | S | 104 m3/h | 1m 45dB 3m 42dB | do 35 Pa | 230 V, 50Hz | 15 W | 2400+-200 | IP X4 | 0,37 kg | 0,43 kg | 20 |

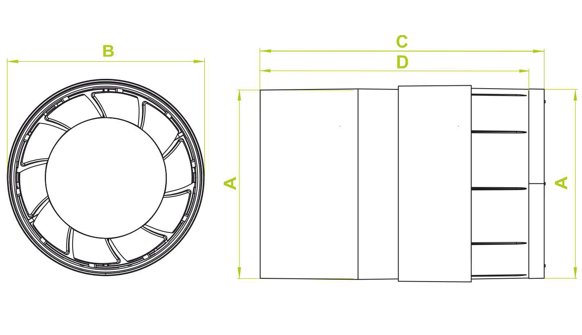

| [mm] | aRc 2 ø 100 |
|---|---|
| A | 99,5 |
| B | 102 |
| C | 148 |
| D | 140 |
Documents
Video
Back valve
The back valve prevent from backflow of the air into the room. It is assembled on the fan flange. It prevents from penetration of pollutants from the vent flue. The back valve provides the air flow in one direction only, without reducing significantly the efficiency of the fan.
