Domestic duct fan aRc
Axial duct fan from aRc family usually mounted directly in the duct system. The mounting plate gives an additional functionality to mount the fan outside the ventilation duct.
Available versions:
Ø 100 Ø 120 Ø 150
S
connected via an electrical cube to the basic model and can be activated using its own switch, for example, together with the lighting
BB
upon special request, it is feasible to configure aRc fans with ball bearings
aRc 2 model with mounting tube
Descripion
Models and technical specifications
Documents
Back valve
Descripion
The axial duct fan from the aRc family, typically installed directly in the duct system, has additional functionality thanks to the mounting base, which allows it to be installed outside the ventilation duct as well.
All our fans are equipped with thermal protection to safeguard against overheating. A back valve can be added to the fan to prevent reverse air flow.
Models and technical specifications
| diameter | code | version | air flow | acoustic pressure | static pressure | voltage frequency | motor power | rev. (1/min) | equipment protection | net weight | gross weight | pcs in package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 01-049 | S | 104 m3/h | 1m 45dB 3m 42dB | do 35 Pa | 220-230V/ 50-60Hz | 15 W | 2400+-200 | IP X4 | 0,37kg | 0,43 kg | 20 |
| 120 | 01-050 | S | 158 m3/h | 1m 46dB 3m 44dB | do 35 Pa | 220-230V/ 50-60Hz | 16 W | 2200+-200 | IP X4 | 0,46 kg | 0,54 kg | 20 |
| 150 | 01-051 | S | 257 m3/h | 1m 43dB 3m 41dB | do 21 Pa | 220-230V/ 50-60Hz | 20 W | 1450+-200 | IP X4 | 0,57 kg | 0,68 kg | 20 |

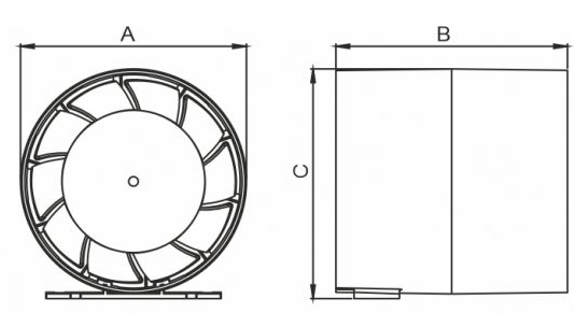

| [mm] | aRc ø 100 | aRc ø 120 | aRc ø 150 |
|---|---|---|---|
| A | 99.5 | 119.5 | 149.5 |
| B | 102 | 102 | 102 |
| C | 102 | 122 | 125 |
Documents
Back valve
A back valve can be added to the fan to prevent reverse air flow.
