Adjustable grille
Our unique idea has four sliders on a special fences that let you adjust the size and shape of a duct. If you remove the sliders, the grill becomes a cover without frame, with four mounting holes that let you hide any ventilation duct.
Fit into ventilation ducts:
80-150
Available colors:
Models and technical specifications
Documents
3D
Buckle adjustment instructions
Models and technical specifications

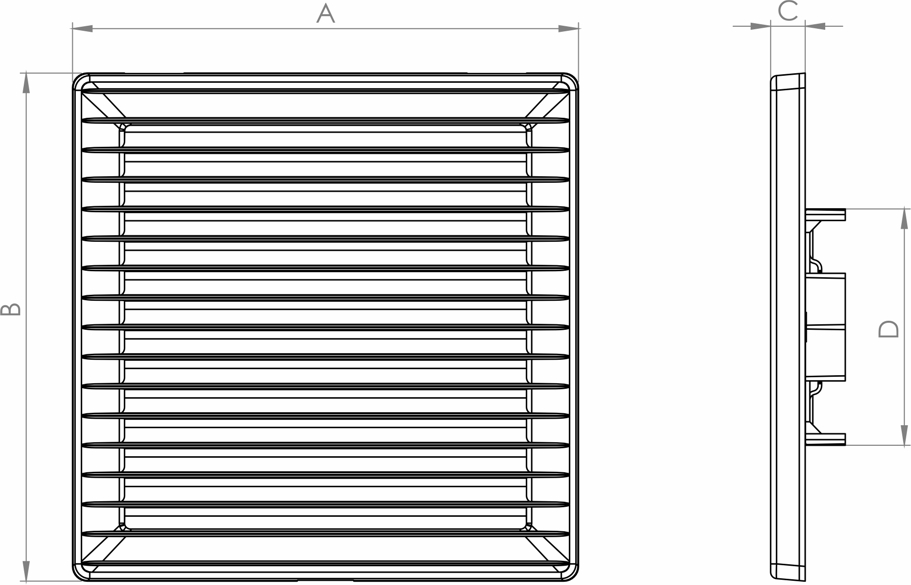

| code | name | color | A | B | C |
|---|---|---|---|---|---|
| 02-328 | Adjustable skew grille Ø80-150 white | white | 172 | 172 | 11,5 |
| 02-329 | Adjustable skew grille Ø80-150 brown | brown | 172 | 172 | 11,5 |
| 02-330 | Adjustable skew grille Ø80-150 gray | gray | 172 | 172 | 11,5 |
| 02-345 | Adjustable skew grille Ø80-150 graphite | graphite | 172 | 172 | 11,5 |
| 02-331 | Adjustable grille with shutter Ø80-150 white | white | 172 | 172 | 11,5 |
| 02-332 | Adjustable grille with shutter Ø80-150 brown | brown | 172 | 172 | 11,5 |
| 02-333 | Adjustable grille with shutter Ø80-150 gray | gray | 172 | 172 | 11,5 |
| 02-357 | Adjustable grille with shutter Ø80-150 graphite | graphite | 172 | 172 | 11,5 |
Documents
3D
Buckle adjustment instructions
If the buckles are too loose, remove the buckle from the guide, press in the area marked with an arrow, and then reattach it.
