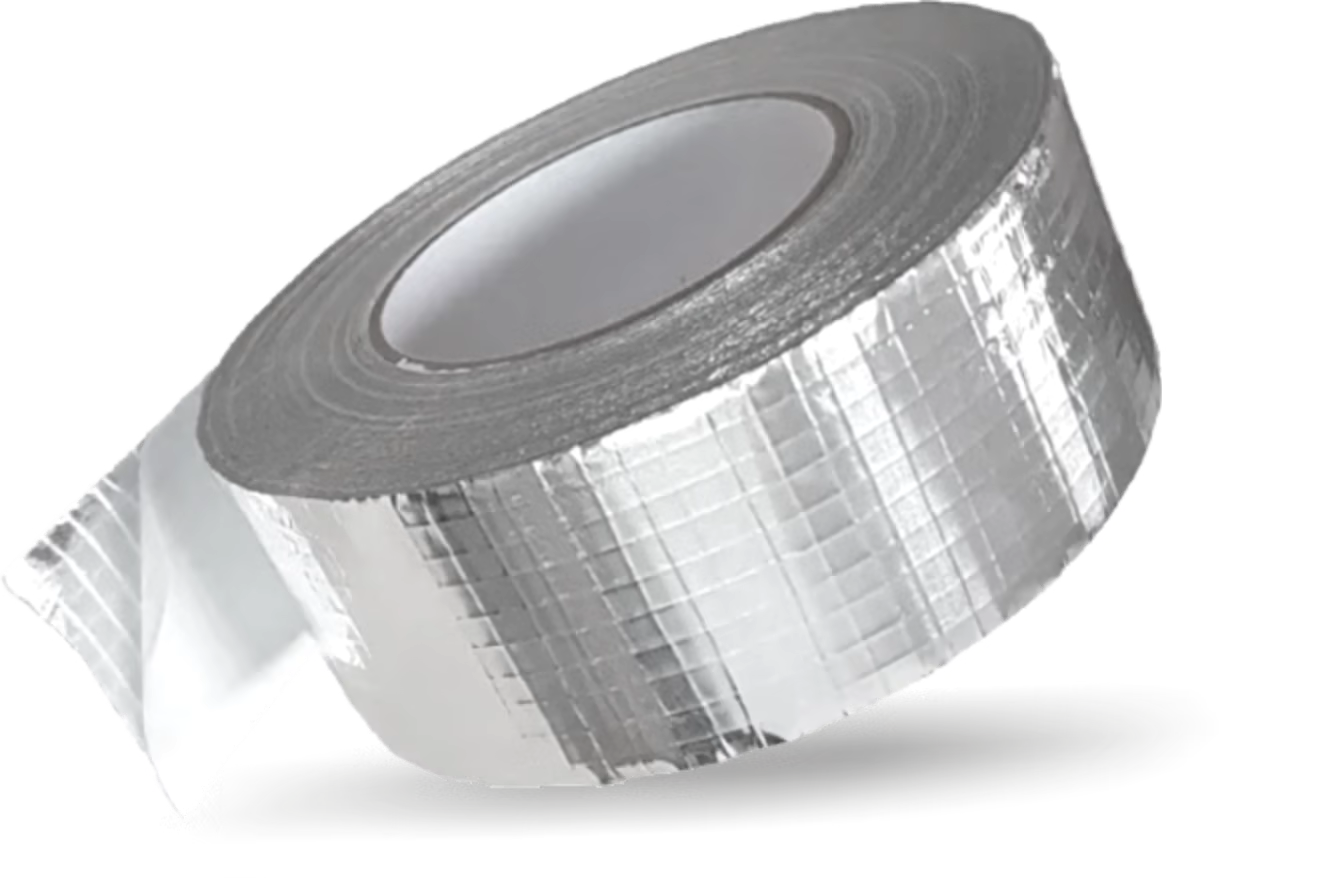

Aluminum tape reinforced with a fiberglass mesh
Aluminium tape, reinforced with fibreglass mesh, used to connect to mats and insulating aluminium heating segments. It assures 100% vapour barrier, high mechanical strength and good adhesion to irregular surfaces.
50 mm x 50 m
75 mm x 50 m
100 mm x 50 m
Models and technical specifications
Models and technical specifications
| code | name | width [mm] | lenght [m] |
|---|---|---|---|
| 03-043 | Reinforced aluminum tape 50mm x 50m | 50 | 50 |
| 03-044 | Reinforced aluminum tape 75mm x 50m | 75 | 50 |
| 03-045 | Reinforced aluminum tape 100mm x 50m | 100 | 50 |
| Parameters | Value |
|---|---|
| Total thickness | 0.065 mm |
| Aluminum foil thickness | 0.025 mm |
| Operating temperature | -30 to +120°C |
| Tensile strength | min. 18 N/cm |
| Adhesion to steel | min. 6 N/cm |
| Relative elongation | max 3% |
