Round connector
Plastic cround connector for ventilation systems in the straight version and with a back valve and wall flange.
Ø100 Ø125 Ø150
Available colors:
Models and technical data
Models and technical data

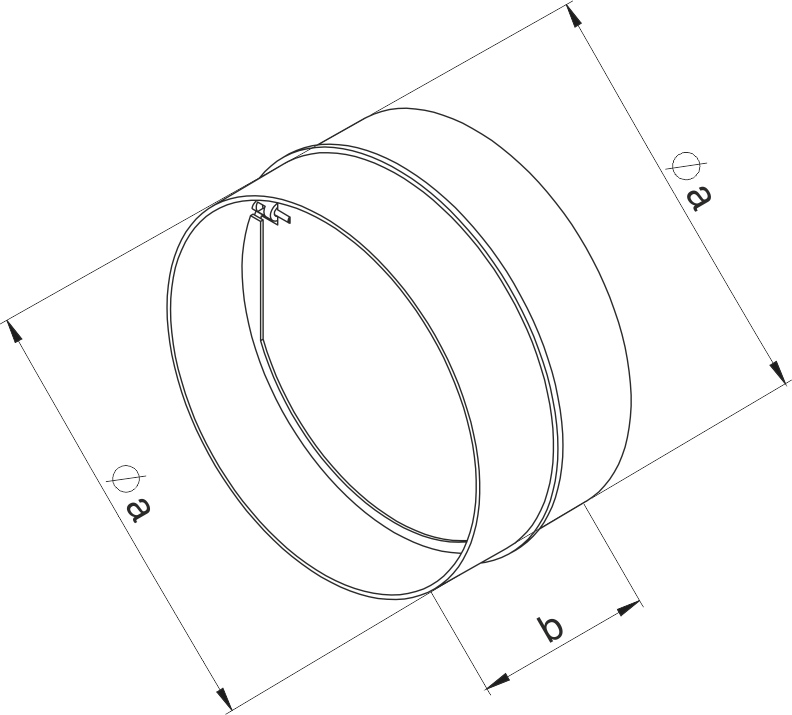

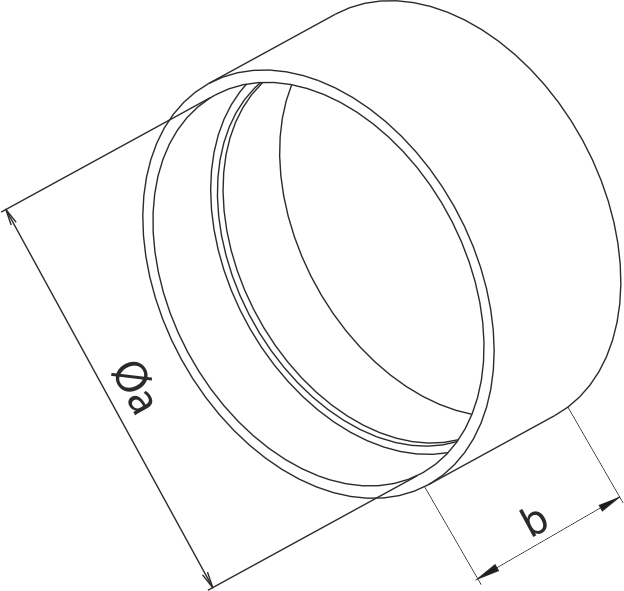

| code | name | øa | b | type |
|---|---|---|---|---|
| 02-464 | Round connector ø100 | 100 | 6 | nipple |
| 02-476 | Round connector ø125 | 125 | 6 | muff |
| 02-488 | Round connector ø150 | 150 | 6 | muff |
| 02-463 | Round connector with back flow valve ø100 | 100 | 6 | nipple |
| 02-475 | Round connector with back flow valve ø125 | 125 | 6 | muff |
| 02-487 | Round connector with back flow valve ø150 | 150 | 6 | muff |
| 02-505 | Round connector with back flow valve and collar ø100 | 100 | 6 | nipple |
