Metal ventilation grille with shutters

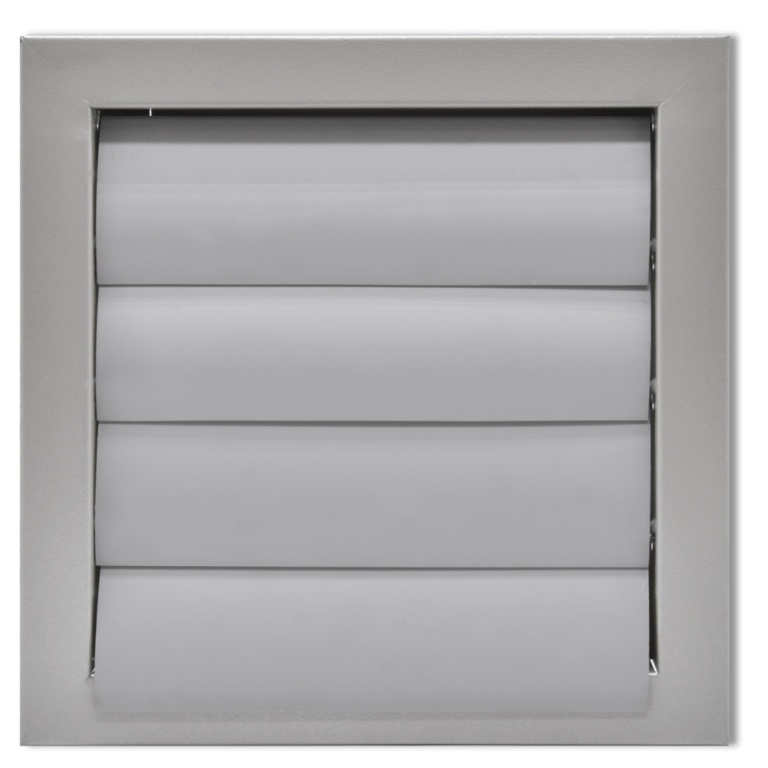

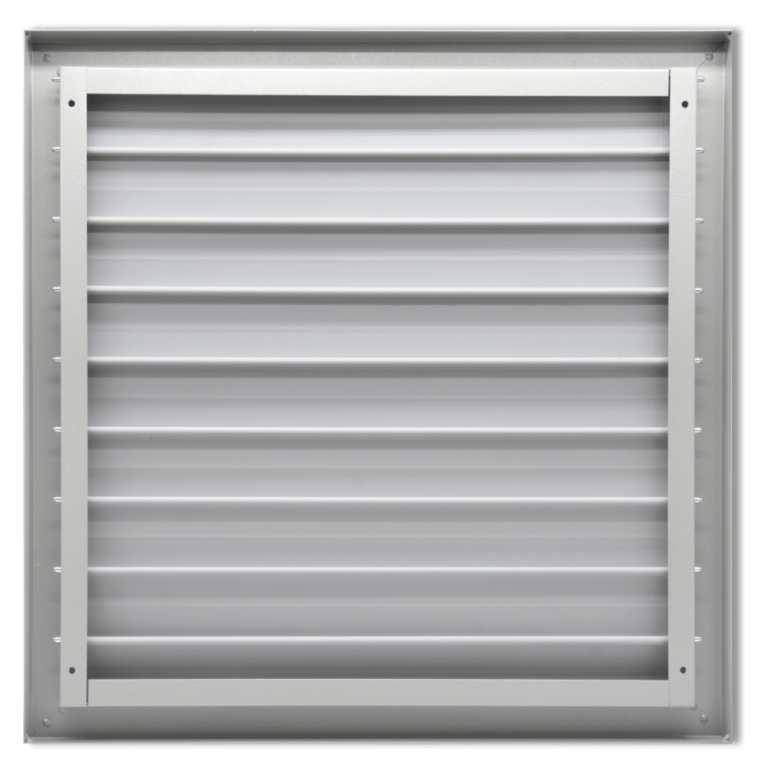

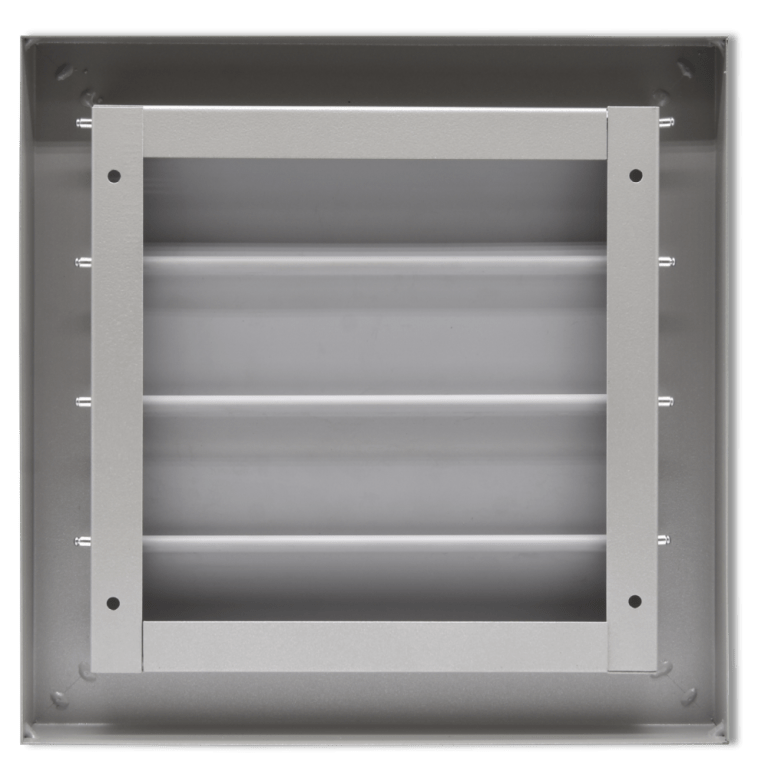

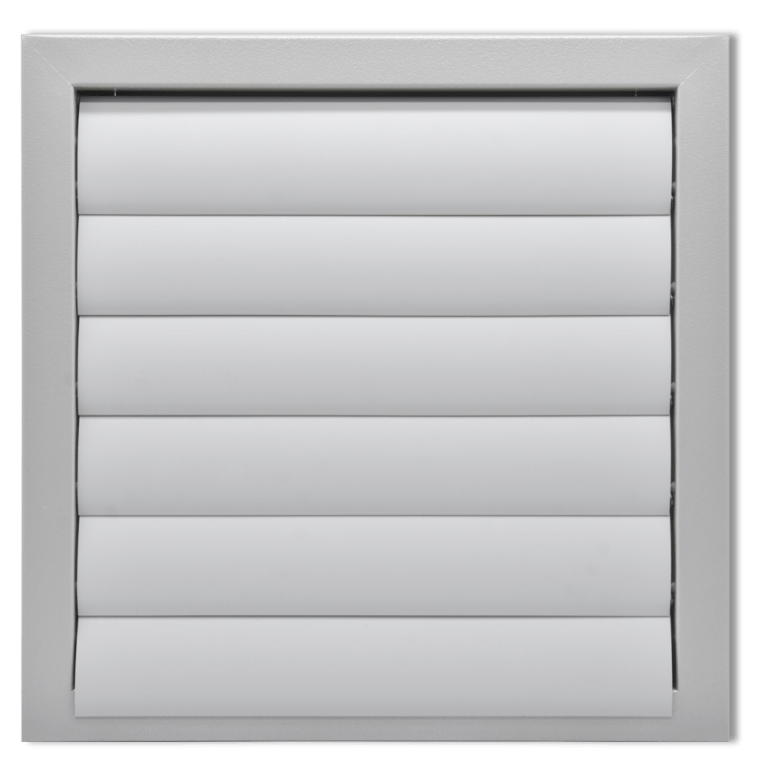

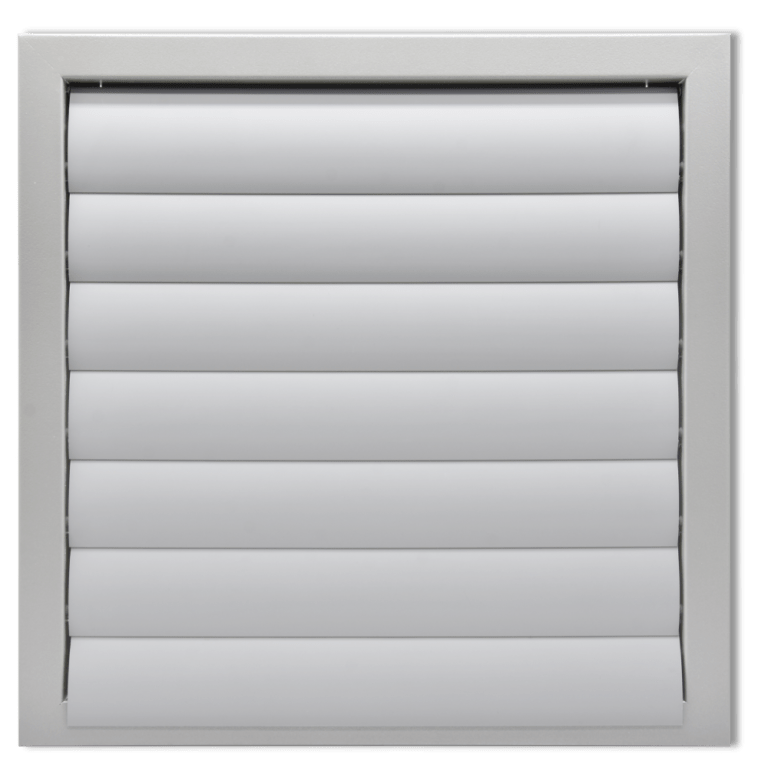

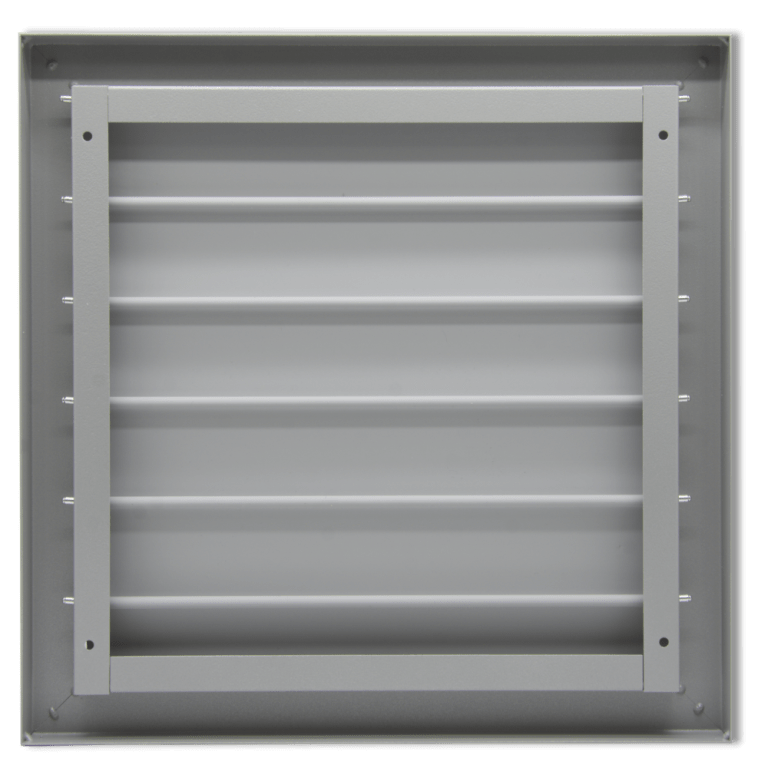

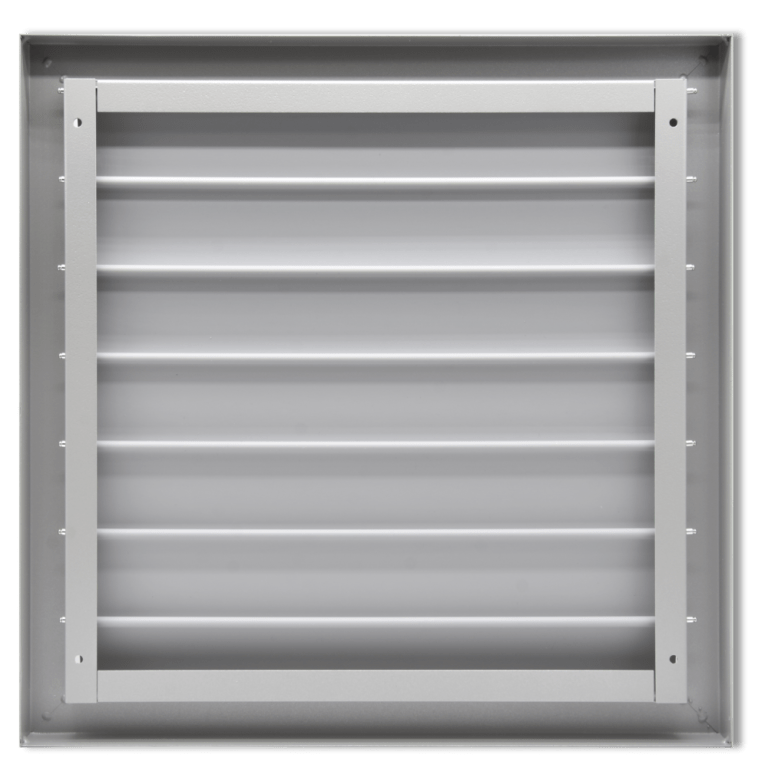

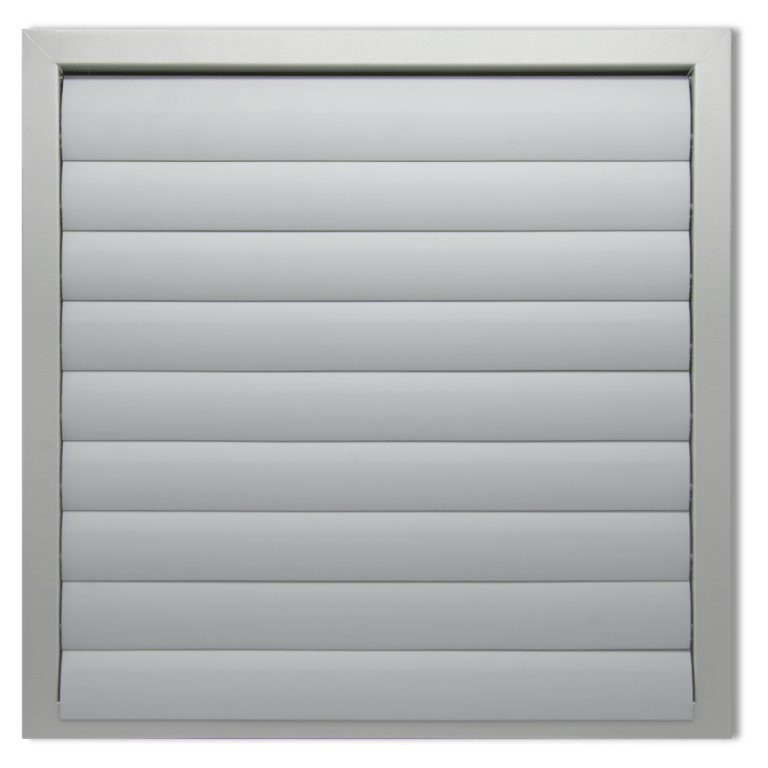

This metal ventilation grille with shutters is designed for outdoor installation as part of an exhaust ventilation system. Shutters effectively prevent air backflow, protecting interiors from outside pollutants and reducing heat loss. The grille is used in ventilation, heating, and air conditioning systems. The frame is made of high-quality metal with a polymer coating, and shutters are made of durable PVC.
200 x 200
250 x 250
300 x 300
350 x 350
400 x 400
450 x 450
485 x 485
550 x 550
655 x 655
805 x 805
Available colors:
Models and technical specifications
Documents
Models and technical specifications
| code | size | color | frame material | shutters material | B | B1 | B2 | c |
|---|---|---|---|---|---|---|---|---|
| 02-213 | 200×200 | gray | metal with a polymer coating | PVC | 200 | 150 | 136 | – |
| 02-208 | 250×250 | gray | metal with a polymer coating | PVC | 250 | 200 | 186 | – |
| 02-222 | 300×300 | gray | metal with a polymer coating | PVC | 300 | 250 | 236 | – |
| 02-294 | 350×350 | gray | metal with a polymer coating | PVC | 350 | 300 | 286 | – |
| 02-223 | 400×400 | gray | metal with a polymer coating | PVC | 400 | 350 | 336 | – |
| 02-295 | 450×450 | gray | metal with a polymer coating | PVC | 450 | 400 | 386 | – |
| 02-207 | 485×485 | gray | metal with a polymer coating | PVC | 485 | 434 | 420 | – |
| 02-206 | 550×550 | gray | metal with a polymer coating | PVC | 550 | 500 | 486 | – |
| 02-296 | 655×655 | gray | metal with a polymer coating | PVC | 655 | 605 | 591 | 292,5 |
| 02-297 | 805×805 | gray | metal with a polymer coating | PVC | 805 | 755 | 741 | 367,5 |
| Calculation formula ΔPp = ΔP × Kp |
Correction factor Kp | ||||||
| Kp | 0° | 22° | 45° | ||||
| 1 | 1,25 | 1,5 | |||||
| Calculation formula LWA = LWAO × K |
Correction factor K | ||||||
| Sap [m] | 0,01 | 0,02 | 0,05 | 0,1 | 0,2 | 0,4 | |
| -9 | -6 | -3 | 0 | +3 | +6 | ||
Markings:
| ΔP | pressure drop at different blade positions [Pa] |
| ΔPp | pressure drop [Pa] |
| Kp | correction factor for calculating pressure loss depending on the deflection angle |
| LWA | sound power level [dB(A)] |
| LWA0 | sound power level for an air flow area of 0,1m2 [dB(A)] |
| K | correction factor for calculating the sound power level depending on the air flow [dB(A)] |
| Sap | air flow area [m2] |
| V | rated speed [m/s] |
