aRslim ceiling air supply-exhaust valve
aRslims are ceiling ventilation diffusers made of ABS plastic, designed to distribute air evenly throughout the room from above. They are used as elements of mechanical ventilation systems in internal ventilation ducts, suspended ceilings, and building ventilation systems.
An additional advantage of aRslim is the ability to regulate the airflow or completely shut it off. This is a particularly important feature in rooms periodically exposed to high humidity and during the winter season. Air supply-exhaust valve are recommended for installation in spiro ducts and other round ventilation systems. Compatible with filters to ensure cleaner air.
aRslim consists of three elements: a mounting frame, a body and a plate that regulates the airflow. The plate allows precise adjustment of the amount of air flowing, depending on the ventilation needs of the room.
Ø 100 Ø 120 Ø 150

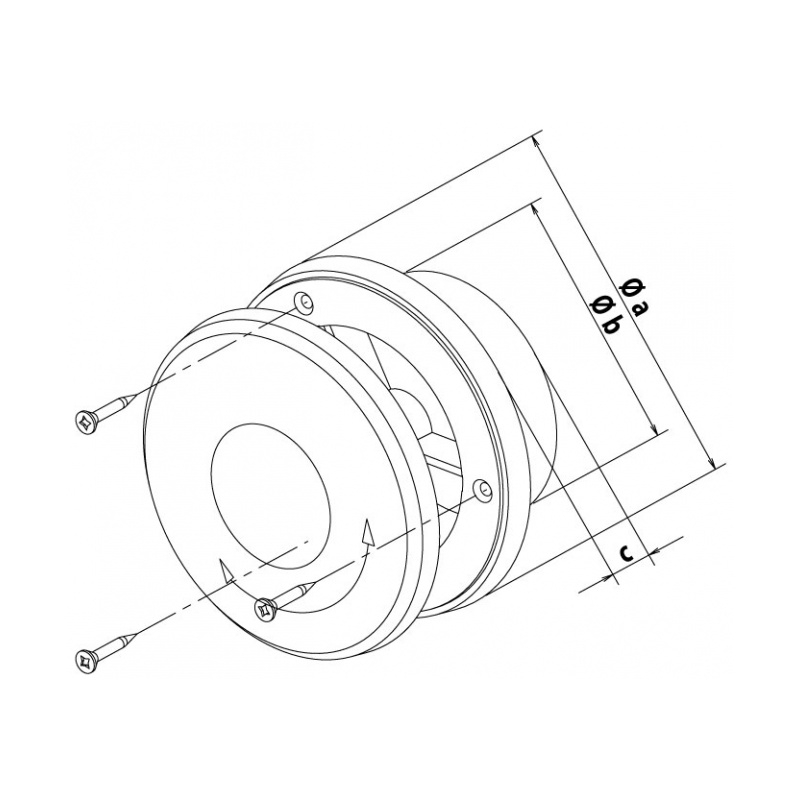

| code | name | color | Øb [mm] | Øa [mm] | Ød [mm] | e [mm] | g [mm] | h [mm] |
|---|---|---|---|---|---|---|---|---|
| 02-059 | aRslim ceiling air supply-exhaust valve 100 | white | 99 | 135 | 140 | 38 | 6 | 6 |
| 02-060 | aRslim ceiling air supply-exhaust valve 120 | white | 118 | 155 | 160 | 38 | 6 | 7 |
| 02-061 | aRslim ceiling air supply-exhaust valve 150 | white | 148 | 185 | 190 | 38 | 6 | 9 |

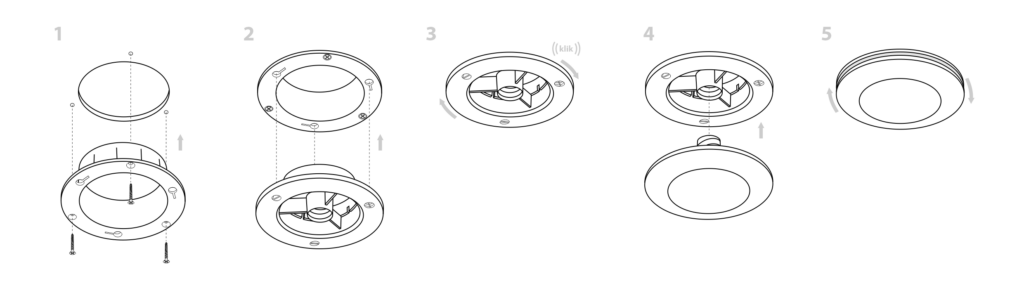

The installation of aRslim is quick and simple. Only three screws are required to mount the air valve frame. After fixing the frame in the opening (1), insert the body into the mounting frame by placing the mounting element on the body into the frame socket(2). Then press the body toward the ceiling and rotate it clockwise until you hear a characteristic click (3), which indicates that it has been properly secured. Screw the plate with the panel into the housing by turning it clockwise (4, 5). Adjust the airflow by rotating the plate.
Thanks to the three-part design, the aRslim can be easily removed for mounting a dedicated filter (or replacement), cleaning the air valve and maintenance of the ventilation system. Just press the body together with the plate against the ceiling, turn it counterclockwise, and remove it from the mounting frame.
When opening the airflow from the fully closed position (the regulating disc is tightly pressed against the air valve body), hold the body in place and turn the regulating disc counterclockwise to prevent the body from loosening.
To prevent dust and contaminants from entering the air valve, a dedicated G4 class filter has been designed. The filter improves indoor air quality and protects the ventilation system from dirt buildup.
